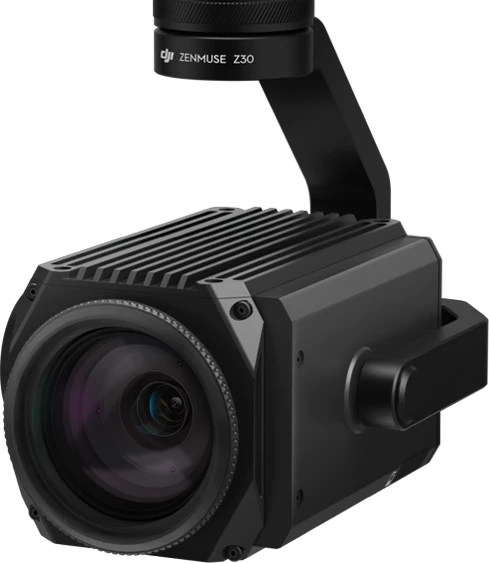

Zenmuse Z30

The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x.

  • Description
  • Specs

CLOSING THE DISTANCE

Aerial platforms are rapidly becoming vital tools for businesses looking to more efficiently collect information crucial to their operations. As the first integrated aerial camera with an optical zoom up to 30x and digital up to 6x, the Zenmuse Z30 offers unparalleled image data capture. Enterprises are now able to capture the information they require from a greater range, making image data collection significantly faster and eliminates risk of harm to both personnel and equipment.

Designed to seamlessly integrate with DJI’s Matrice series of airframes, the Zenmuse Z30 works right out of the box and gives access to the intelligent features DJI is known for.

Main Features

Zoom


The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to detect damage.

TapZoom


With TapZoom, precise collection of visual data is as easy as tapping your finger to point the camera at the subject of your inspection. The Zenmuse Z30 automatically adjusts its focal length to give you an enlarged view, making the most minute of details visible in just seconds.

Stabilization


A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The Z30 incorporates DJI’s leading gimbal technology for stabilization within 0.01° and the same precision for controls. This enables long-range inspection that is always high in fidelity.

Applications

Cell Tower Inspection


Safer and quicker cell tower inspections with the Zenmuse Z30. Eliminate the need for dangerous manual inspection and the risk of crashing into assets by inspecting from a distance. Stream your footage to a central hub to reduce boots on the ground and ensure no extra trips are needed.

Wind Turbine Inspection


Detect fine damages from afar while avoiding damage to personnel and equipment. Set up your aircraft to circle your object of inspection with Point of Interest for a full 360° view of your asset.

Firefighting


First responders can now quickly get an overview of a scene, and use the 30x zoom to drill down for accurate and specific intelligence to base their operations on.

GENERAL

Name Zenmuse Z30
Dimensions 152×137×61 mm
Weight 556 g

CAMERA

Sensor CMOS, 1/2.8"
Effective Pixels: 2.13 M
Lens 30x Optical Zoom
F1.6 (Wide) - F4.7 (Tele)
Zoom Movement Speed:
- Optical Wide – Optical Tele: 4.6 sec
- Optical Wide – Digital Tele: 6.4 sec
- Digital Wide – Digital Tele : 1.8 sec
Focus Movement Time:
∞ - near: 1.1 sec
FOV 63.7°(Wide) - 2.3°(Tele)
Digital Zoom 6x
Min. Working Distance 10 mm - 1200 mm
Photo Formats JPEG
Video Formats MOV, MP4
Working Modes Capture, Record, Playback
Still Photography Modes Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec)
Exposure Mode Exposure Mode Auto, Manual, Shutter priority, Aperture priority
Exposure Compensation ±2.3 (1/3 increments)
Metering Mode Center-weighted metering, Spot metering (Area option 12x8)
AE Lock Supported
Electronic Shutter Speed 1/30 – 1/6000 s
White Balance Auto, Sunny, Cloudy, Incandescent, Custom (2000K - 10000K)
Video Captions Supported
TapZoom Supported
TapZoom Range 1-5
Defog Supported
One Key to 1x Image Supported
Anti-flicker 50 Hz, 60 Hz
PAL/NTSC Supported
Supported SD Cards MicroSD (SD / SDHC / SDXC)
Max. Capacity: 64 GB, Class 10 or UHS-1
Supported File Systems FAT32 (≤ 32 GB)
exFAT (> 32 GB)

GIMBAL

Angular Vibration Range ±0.01°
Mount Detachable
Controllable Range Pitch : +40° to -90°, Yaw: ±320°
Mechanical Range Pitch : +50° to -140°, Yaw: ±330°, Roll: +90° to -50°
Max Controllable Speed Pitch : 180°/s, Yaw: 180°/s

ENVIRONMENTAL

Operating Temperature 14° to 113° F (-10° to 45° C)
Non-Operating Temperature -4° to 140° F (-20° to 60° C)
